Chamber Drawings

Drawings for an experimental sand chamber with a 15×26-inch working area.

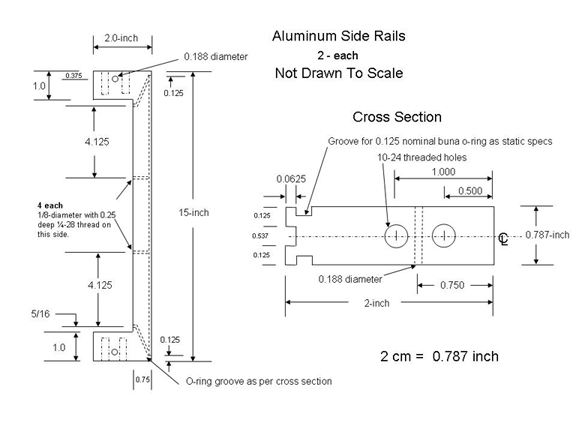

side rail plans

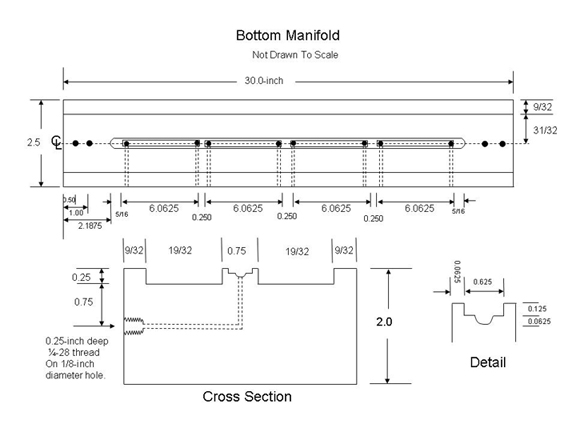

Bottom Manifold Plans

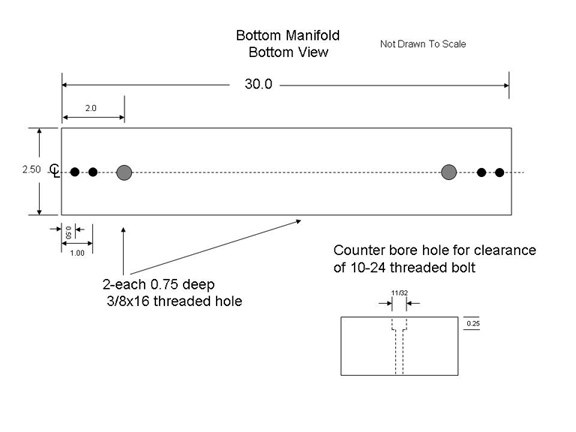

Bottom view of Bottom Manifold Plans

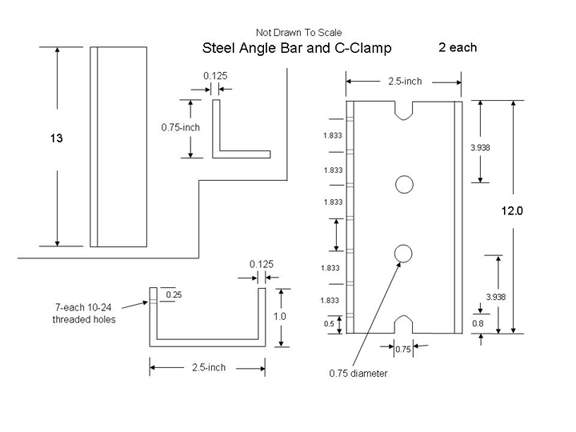

Side clamp plans

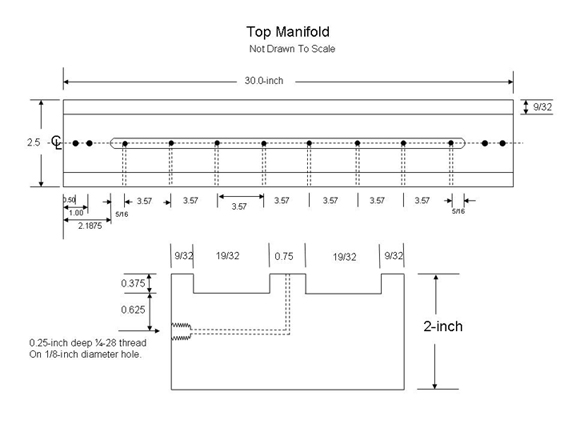

Top manifold plans

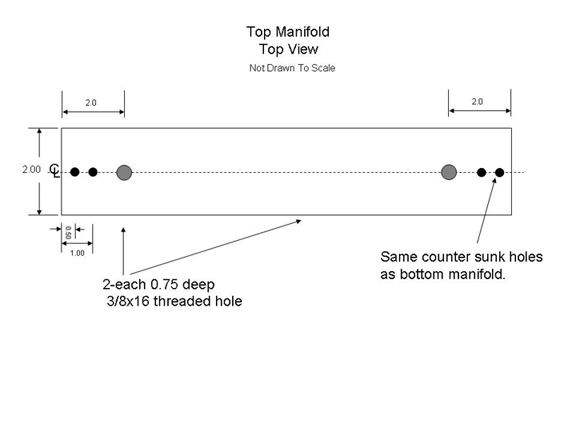

Top view of top manifold plans

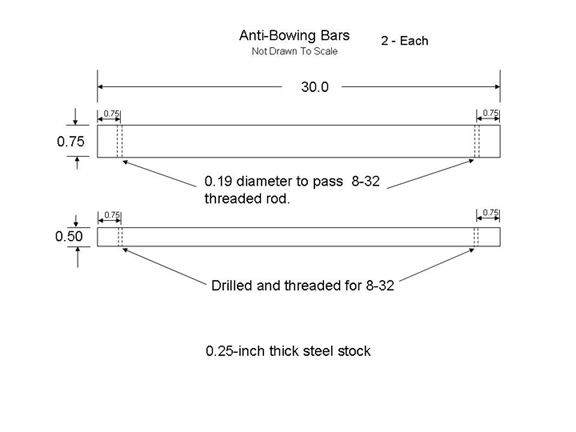

Anti-bowing bar plans
  • Working area from top to bottom of glass = Total glass length – 2x(5/8)” due to expansion bar,
  • Length of top and bottom manifold = horizontal working area +4″ due to side rail structure.
  • Angle bar length = 2 inch less than length of glass.
  • C-Clamp length = 1 inch shorter than angle bar.
